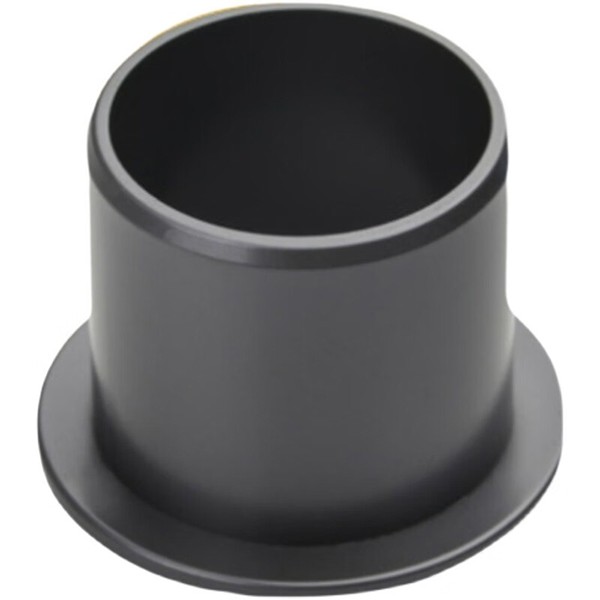

7643N11 Static-Dry-Running Flanged Sleeve Bearings

$4.29

Quantity:

Add to Cart

Send a Inquiry

Add to Wishlist

Product Number:

7643N11

Additional info

Lubrication	Not Required
Material	Plastic Blend
Performance	Dry Running, Static Dissipative, Moisture Resistant
For Shaft Diameter	6 mm
For Housing ID	8 mm
Length	6 mm
Length Tolerance	-0.18 mm to 0 mm
Flange OD	12 mm
Flange Thickness	1 mm
Temperature Range	-40° F to 245° F
Bearing Type	Plain
For Load Direction	Combined Radial and Thrust
For Shaft Type	Round
Product ID	6 mm
ID Tolerance	-0.03 mm to 0 mm
OD	8 mm
OD Tolerance	0 mm to 0.015 mm
Plain Bearing Type	Flanged Sleeve
Shaft Mount Type	Slip Fit
System of Measurement	Metric
Country of Origin	Germany
DFARS Compliance	Specialty Metals COTS-Exempt
ECCN	EAR99
REACH Compliance	REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant
RoHS Compliance	RoHS 3 (2015/863/EU) Compliant
Schedule B Number	848330.809
Color	Black
Surface Resistance	1× 10^8 ohm
Product Description	Prevent electrostatic charge buildup in moving equipment. These bearings are typically used in electronics manufacturing where static can damage products and in laboratories where a spark could ignite flammable materials. They are made of a naturally slippery plastic blend, so you’ll never have to add lubricant. These bearings also keep your workspace clean with no lubricant to drip or flake and attract dust. Flanged sleeve bearings combine a sleeve and thrust bearing in one. The flange supports thrust loads and prevents the bearing from being pushed out of place. The sleeve is the simplest way to support the load of a rotating shaft while reducing friction. Also known as plain bearings.

7643N11 Static-Dry-Running Flanged Sleeve Bearings

$4.29 $0.00

Bulk orders will be discounted, please contact us.

Prevent electrostatic charge buildup in moving equipment. These bearings are typically used in electronics manufacturing where static can damage products and in laboratories where a spark could ignite flammable materials. They are made of a naturally slippery plastic blend, so you’ll never have to add lubricant. These bearings also keep your workspace clean with no lubricant to drip or flake and attract dust. Flanged sleeve bearings combine a sleeve and thrust bearing in one. The flange supports thrust loads and prevents the bearing from being pushed out of place. The sleeve is the simplest way to support the load of a rotating shaft while reducing friction. Also known as plain bearings.

Product Number: 7643N11

Add to Wishlist Add to Compare

SEND INQUIRY

Description

Lubrication	Not Required
Material	Plastic Blend
Performance	Dry Running, Static Dissipative, Moisture Resistant
For Shaft Diameter	6 mm
For Housing ID	8 mm
Length	6 mm
Length Tolerance	-0.18 mm to 0 mm
Flange OD	12 mm
Flange Thickness	1 mm
Temperature Range	-40° F to 245° F
Bearing Type	Plain
For Load Direction	Combined Radial and Thrust
For Shaft Type	Round
Product ID	6 mm
ID Tolerance	-0.03 mm to 0 mm
OD	8 mm
OD Tolerance	0 mm to 0.015 mm
Plain Bearing Type	Flanged Sleeve
Shaft Mount Type	Slip Fit
System of Measurement	Metric
Country of Origin	Germany
DFARS Compliance	Specialty Metals COTS-Exempt
ECCN	EAR99
REACH Compliance	REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant
RoHS Compliance	RoHS 3 (2015/863/EU) Compliant
Schedule B Number	848330.809
Color	Black
Surface Resistance	1× 10^8 ohm
Product Description	Prevent electrostatic charge buildup in moving equipment. These bearings are typically used in electronics manufacturing where static can damage products and in laboratories where a spark could ignite flammable materials. They are made of a naturally slippery plastic blend, so you’ll never have to add lubricant. These bearings also keep your workspace clean with no lubricant to drip or flake and attract dust. Flanged sleeve bearings combine a sleeve and thrust bearing in one. The flange supports thrust loads and prevents the bearing from being pushed out of place. The sleeve is the simplest way to support the load of a rotating shaft while reducing friction. Also known as plain bearings.
