4471N13
$605.35
$0.00
| For Load Direction | Combined Radial, Thrust, and Moment |
| Bearing Seal Type | Open |
| Ring Material | Steel |
| For Shaft Diameter | 10 mm |
| For Housing ID | 43 mm |
| Width | 5 mm |
| Width Tolerance | -0.075 mm to 0 mm |
| Maximum Rotation Speed | 2,800 rpm |
| Lubrication | Lubricated |
| Temperature Range | 0° F to 210° F |
| Bearing Construction | Single Row |
| Bearing Type | Roller |
| For Shaft Type | Round |
| Product ID | 10 mm |
| ID Tolerance | -0.008 mm to 0 mm |
| Lubricant | Grease |
| OD | 43 mm |
| Roller Bearing Type | Crossed |
| Roller Material | Steel |
| Shaft Mount Type | Press Fit |
| System of Measurement | Metric |
| Country of Origin | Japan, Vietnam |
| DFARS Compliance | Specialty Metals COTS-Exempt |
| ECCN | EAR99 |
| REACH Compliance | REACH (EC 1907/2006) (11/07/2024, 242 SVHC) Compliant |
| RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
| Schedule B Number | 848250 |
| OD Tolerance | -0.011 mm to 0 mm |
| Combined Load Capacity Dynamic | 330 lbf |
| Combined Load Capacity Static | 310 lbf |
| Outer Ring Mounting Hole Number of Mounting Holes | 6 |
| Inner Ring Mounting Hole Mounting Hole Thread Size | M2.5 |
| Inner Ring Mounting Hole Mounting Hole Thread Pitch | 0.45 mm |
| Outer Ring Mounting Hole Bolt Circle Diameter | 35 mm |
| Outer Ring Mounting Hole Mounting Hole Location | Outer Ring |
| Mounting Fasteners Included | No |
| Inner Ring Mounting Hole Number of Mounting Holes | 6 |
| Inner Ring Mounting Hole Bolt Circle Diameter | 16 mm |
| Outer Ring Mounting Hole For Mounting Fastener Thread Size | M2.5 |
| Outer Ring Mounting Hole Mounting Hole Diameter | 2.9 mm |
| Outer Ring Mounting Hole Mounting Hole Counterbore Depth | 2.8 mm |
| Outer Ring Mounting Hole Mounting Hole Counterbore Diameter | 5.5 mm |
| Mounting Hole Location | Inner Ring |

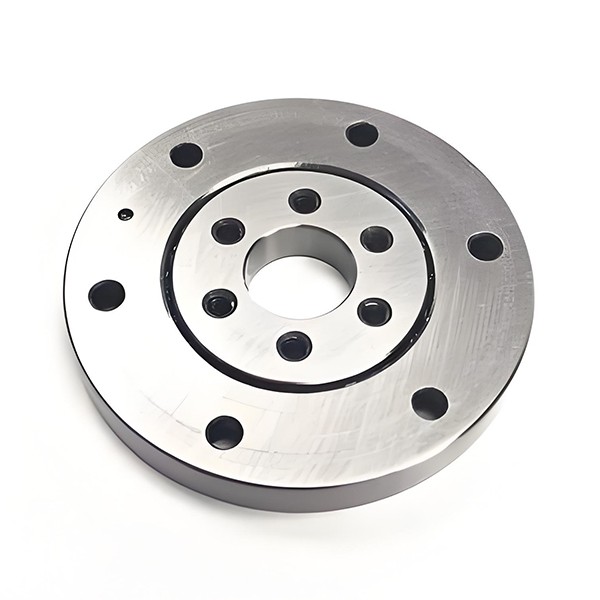

| Product Description | With thinner inner and outer rings, these bearings keep your machines more compact than high-load crossed-roller bearings. Route hydraulic lines, electrical wiring, and other components through the inside of the bearing. Mounting holes on the rings allow for fastening onto hollow joints and shafts. The rollers face in alternating directions to allow for rigid, accurate motion under any combination of radial, thrust, and moment (twisting) loads. Use in applications where highly accurate motion is necessary, such as machine tools and industrial robots. |
