3635N112
$101.77
$0.00
| For Load Direction | Combined Radial and Thrust |
| Bearing Seal Type | Open |
| Ring Material | Steel |
| For Shaft Diameter | 40 mm |
| For Housing ID | 80 mm |
| Width | 18 mm |
| Radial Load Capacity Dynamic | 14150 |
| Radial Load Capacity Static | 11900 |
| Maximum Rotation Speed | 10,900 rpm |
| Lubrication | Required |
| For Shaft Surface Smoothness Ra | 0.8 μm |
| Temperature Range | -20° F to 245° F |
| Bearing Construction | Single Row |
| Bearing Type | Roller |
| Cage Material | Nylon |
| For Shaft Type | Round |
| Product ID | 40 mm |
| ID Tolerance | -0.016 mm to 0 mm |
| Lubricant | Grease, Oil |
| OD | 80 mm |
| Roller Bearing Type | Cylindrical |
| Roller Material | Steel |
| Shaft Mount Type | Press Fit |
| System of Measurement | Metric |
| Country of Origin | India |
| DFARS Compliance | Specialty Metals COTS-Exempt |
| ECCN | EAR99 |
| REACH Compliance | Not Compliant |
| RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
| Schedule B Number | 848240 |
| Specifications Met | DIN 5412-1 |
| OD Tolerance | -0.03 mm to 0 mm |
| Thrust Load Capacity Dynamic | Not Rated |
| Thrust Load Capacity Static | Not Rated |

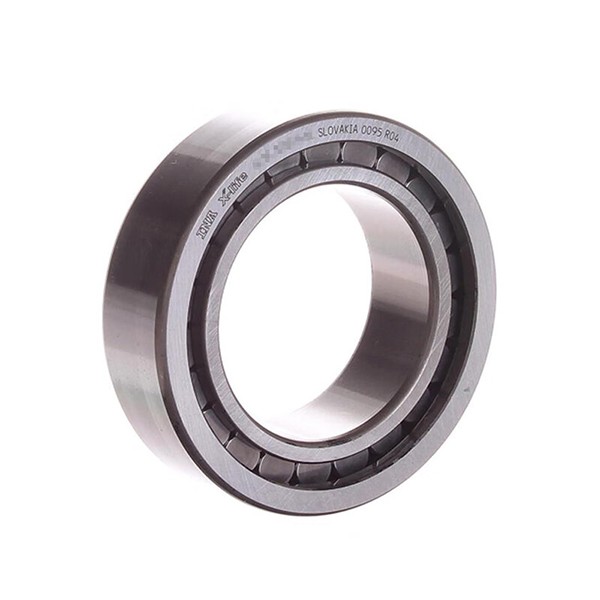

| Product Description | With cylindrical rollers to distribute load over a large surface area, these bearings are often used to support heavy loads at high speeds in applications such as power generation and metal recycling. A cage prevents the rollers from touching each other, reducing friction for high-speed use. All of these bearings have an inner ring that's flanged on one side, so they only allow heat expansion in one direction. The bearings can be taken apart, so you can install them with precision and quickly dismantle them for maintenance or replacement. |
