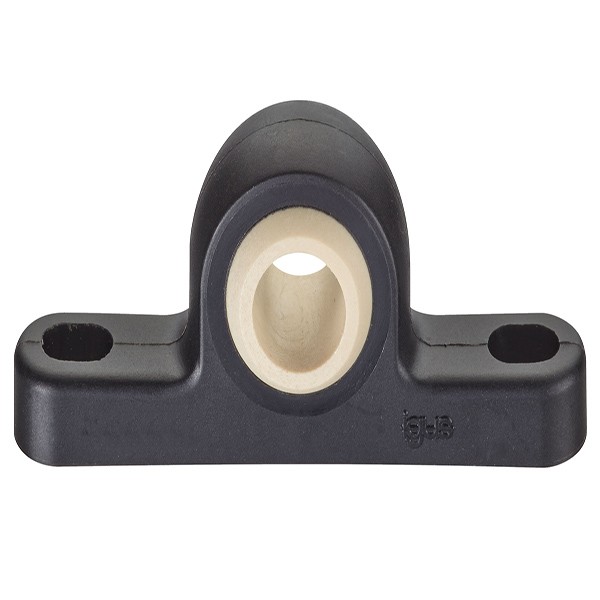

6687K32 Dry-Running Mounted Sleeve Bearings for High Misalignment

$5.82 $8.95

Quantity:

Add to Cart

Send a Inquiry

Add to Wishlist

Product Number:

6687K32

Additional info

Mounted Bearing Type	Base Mount
Bearing Type	Plain
Housing Material	Nylon
Shaft Mount Type	Slip Fit
For Shaft Diameter	6 mm
Center Height	10 mm
Overall Height	18 mm
Overall Length	43 mm
Overall Width	9 mm
Bearing Material	Nylon
Misalignment Capability	29°
Alignment Style	Self-Aligning
For Load Direction	Radial
For Shaft Type	Round
Product ID	6 mm
ID Tolerance	0.02 mm to 0.068 mm
Lubrication	Not Required
Mounting Hole Hole Length	6 mm
Mounting Hole Hole Width	4.5 mm
Mounting Hole Hole Center to Center	33 mm
Mounting Hole Number of Holes	2
Mounting Hole Fasteners Included	No
Performance	Dry Running, High Misalignment
System of Measurement	Metric
Temperature	-40° F to 170° F
Country of Origin	Germany
DFARS Compliance	Specialty Metals COTS-Exempt
ECCN	EAR99
REACH Compliance	REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant
RoHS Compliance	RoHS 3 (2015/863/EU) Compliant
Schedule B Number	848330.809
Plain Bearing Type	Sleeve
Bearing Width	9 mm
P Max	Not Rated
PV Max	6,600
V Max	98.4 sfpm
Specifications Met	ISO 12240-1
Product Description	The spherical sleeve swivels to compensate for shafts at odd angles, even when they're misaligned by more than 20°. Made of naturally slick plastic, these sleeve bearings eliminate the need for routine lubrication. They'll keep shafts spinning with no messy grease to drip off, wash out, or collect dust. With no moving parts, sleeve bearings stand up to grimy environments better than ball bearings.

34%

6687K32 Dry-Running Mounted Sleeve Bearings for High Misalignment

$5.82 $8.95

Bulk orders will be discounted, please contact us.

The spherical sleeve swivels to compensate for shafts at odd angles, even when they're misaligned by more than 20°. Made of naturally slick plastic, these sleeve bearings eliminate the need for routine lubrication. They'll keep shafts spinning with no messy grease to drip off, wash out, or collect dust. With no moving parts, sleeve bearings stand up to grimy environments better than ball bearings. However, with more friction generated, they're less effective at high speeds. The sturdy housing bolts down to support shafts as they turn. Nylon — Nylon bearings are wear-resistant and economical. They're best in dry environments, as exposure to moisture will cause them to weaken and swell. Misalignment Capability — Bearings compensate for as much shaft misalignment as the degree listed. This extends the life of the bearing and protects against wear if shafts are slightly askew.
