1378N14
$376.84
$0.00
| For Load Direction | Combined Radial, Thrust, and Moment |
| Bearing Seal Type | Open |
| Ring Material | Steel |
| For Shaft Diameter | 30 mm |
| For Housing ID | 55 mm |
| Width | 10 mm |
| Width Tolerance | -0.1 mm to 0 mm |
| Maximum Rotation Speed | 1,750 rpm |
| Lubrication | Required |
| Temperature Range | 0° F to 245° F |
| Bearing Construction | Single Row |
| Bearing Type | Roller |
| For Shaft Type | Round |
| Product ID | 30 mm |
| ID Tolerance | -0.01 mm to 0 mm |
| OD | 55 mm |
| Roller Bearing Type | Crossed |
| Roller Material | Steel |
| Shaft Mount Type | Press Fit |
| System of Measurement | Metric |
| Country of Origin | Vietnam |
| DFARS Compliance | Specialty Metals COTS-Exempt |
| ECCN | EAR99 |
| REACH Compliance | REACH (EC 1907/2006) (11/07/2024, 242 SVHC) Compliant |
| RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
| Schedule B Number | 848250 |
| OD Tolerance | -0.013 mm to 0 mm |
| Combined Load Capacity Dynamic | 1,700 lbf |
| Combined Load Capacity Static | 1,850 lbf |
| Performance | High Load |

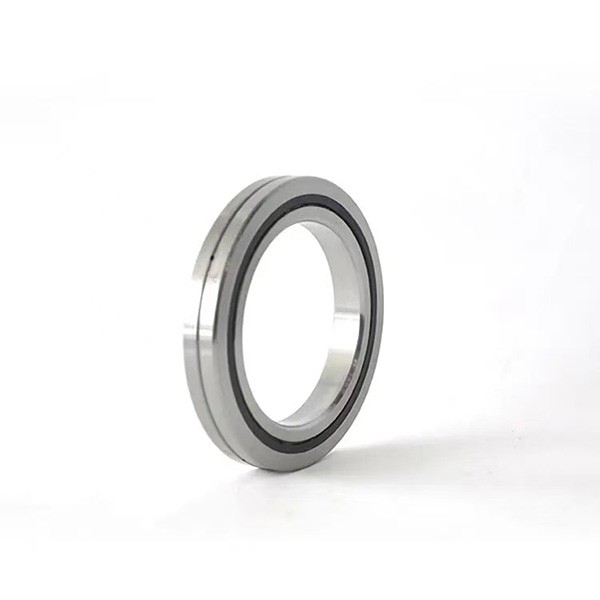

| Product Description | The thicker inner and outer raceways on these bearings can handle heavier loads than the thin-profile crossed-roller bearings. The rollers face in alternating directions to allow for rigid, accurate motion under any combination of radial, thrust, and moment (twisting) loads. Use in applications where highly accurate motion is necessary, such as machine tools and industrial robots. Open Bearing — Open bearings dissipate heat more efficiently than sealed bearings. |
