4456N12
$593.38
$0.00
| For Load Direction | Combined Radial and Thrust |
| Bearing Seal Type | Open |
| Ring Material | Steel |
| For Shaft Diameter | 4" |
| For Housing ID | 7 1/2" |
| Width | 4" |
| Width Tolerance | 0" to 0.016" |
| Radial Load Capacity Dynamic | 179,000 lb. |
| Radial Load Capacity Static | 142,000 lb. |
| Maximum Rotation Speed | 3,800 rpm |
| Lubrication | Required |
| Temperature Range | -65° F to 250° F |
| Bearing Construction | Double Row |
| Bearing Type | Roller |
| Cage Material | Steel |
| For Shaft Type | Round |
| ID Tolerance | 0" to 0.001" |
| Lubricant | Grease |
| OD | 7.5" |
| Roller Bearing Type | Tapered |
| Roller Material | Steel |
| Shaft Mount Type | Press Fit |
| System of Measurement | Inch |
| Country of Origin | United States |
| DFARS Compliance | Specialty Metals COTS-Exempt |
| ECCN | EAR99 |
| REACH Compliance | REACH (EC 1907/2006) (06/14/2023, 235 SVHC) Compliant |
| RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
| Schedule B Number | 848220.0040 |
| OD Tolerance | 0" to 0.001" |
| Thrust Load Capacity Dynamic | 59,000 lb. |
| Thrust Load Capacity Static | 138,000 lb. |
| Performance | High Load |
| Bearing Trade Number | 861/854D |
| Taper Direction | Out |
| Thrust Clearance | 0.012" |
| For Thrust Load Type | Two Direction |
| Includes | One Spacer |
| Cage Width | 4.6999" |
| Inner Ring Width | 4.999" |
| Maximum Radial Clearance | Not Rated |
| Minimum Radial Clearance | Not Rated |

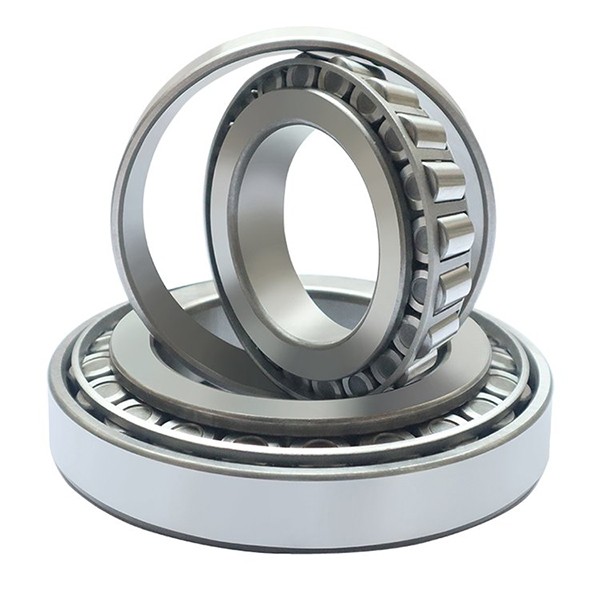

| Product Description | Double rows of tapered bearings support large shafts with heavy loads. They also handle thrust loads in either direction as well as radial loads. All come assembled and ready to use. |
