1418N108
$187.45
$0.00
| For Load Direction | Combined Radial and Thrust |
| Bearing Seal Type | Open |
| Ring Material | Steel |
| For Shaft Diameter | 17 mm |
| For Housing ID | 26 mm |
| Width | 25 mm |
| Width Tolerance | -0.25 mm to 0 mm |
| Radial Load Capacity Dynamic | 2550 |
| Radial Load Capacity Static | 3600 |
| Maximum Rotation Speed | 8,500 rpm |
| Lubrication | Required |
| For Shaft Surface Smoothness Ra | 8 μin |
| Temperature Range | -20° F to 230° F |
| Bearing Construction | Single Row |
| Bearing Type | Ball, Roller |
| Cage Material | Steel |
| For Shaft Type | Round |
| Product ID | 17 mm |
| ID Tolerance | 0 mm to 0.011 mm |
| OD | 26 mm |
| Roller Bearing Type | Needle |
| Roller Material | Steel |
| Shaft Mount Type | Press Fit |
| System of Measurement | Metric |
| Country of Origin | Japan |
| DFARS Compliance | Specialty Metals COTS-Exempt |
| ECCN | EAR99 |
| REACH Compliance | REACH (EC 1907/2006) (11/07/2024, 242 SVHC) Compliant |
| RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
| Schedule B Number | 848280.004 |
| OD Tolerance | -0.011 mm to 0.002 mm |
| Ball Bearing OD | 31 mm |
| Ball Bearing Width | 9 mm |
| Thrust Load Capacity Dynamic | 2,420 lb. |
| Thrust Load Capacity Static | 3,250 lb. |
| Features | Lubrication Groove, Lubrication Hole |
| Ball Bearing Profile | Standard |
| Ball Material | Steel |

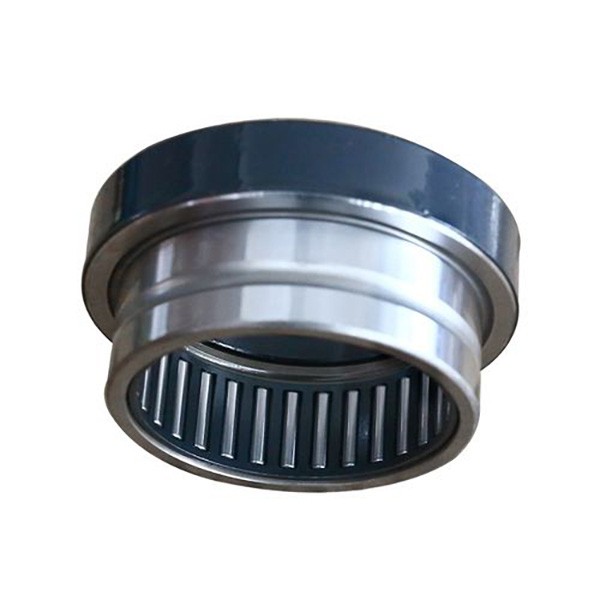

| Product Description | A built -in thrust ball bearing reduces wear from adjacent shaft components, while the needle rollers support high radial loads. Install anywhere you would use separate bearings for radial and thrust loads. |
