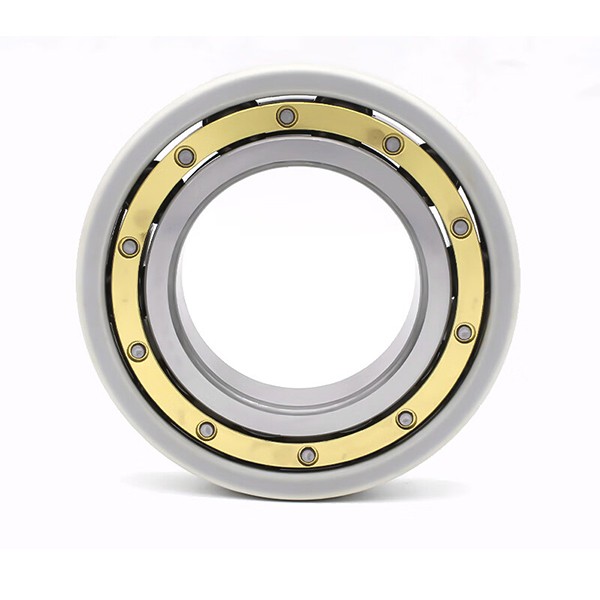

1389N36 Electrically Insulating Ball Bearings

$228.12

Quantity:

Add to Cart

Send a Inquiry

Add to Wishlist

Product Number:

1389N36

Additional info

For Shaft Type	Round
Bearing Construction	Single Row
Bearing Seal Type	Shielded
For Shaft Diameter	40 mm
For Housing ID	80 mm
Width	18 mm
Width Tolerance	-0.25 mm to 0 mm
ABEC Rating	1
Material	Steel
Maximum Rotation Speed	12,000 rpm
Lubrication	Lubricated
Temperature Range Minimum	-20° F
Temperature Range Max	250° F
Bearing Trade Number	6208-2Z
Ball Bearing Profile	Standard
Ball Material	Ceramic
Bearing Type	Ball
Cage Material	Steel
For Load Direction	Radial
Product ID	40 mm
ID Tolerance	-0.012 mm to 0 mm
Lubricant	Grease
OD	80 mm
OD Tolerance	-0.013 mm to 0 mm
Performance	Electrically Insulating
Radial Clearance	0.015 mm to 0.033 mm
Radial Clearance Trade Number	C3
Shaft Mount Type	Press Fit
System of Measurement	Metric
Country of Origin	Japan
DFARS Compliance	Specialty Metals COTS-Exempt
ECCN	1C999
REACH Compliance	Not Compliant
RoHS Compliance	RoHS 3 (2015/863/EU) Compliant
Schedule B Number	848210.5052
Shield Material	Steel
Dynamic Radial Load Capacity	6,500 lb.
Inner Ring Type	Standard
Static Radial Load Capacity	3,400 lb.

1389N36 Electrically Insulating Ball Bearings

$228.12 $0.00

Bulk orders will be discounted, please contact us.

Protect bearings from stray currents. The ceramic balls insulate bearings from electrical charges in electric motors and power generators that can damage the inner ring over time. The balls also generate less heat than metal ones, so you don’t have to lubricate them as often to keep bearings running smoothly. Shielded — The balls are covered just enough to keep out large particles while allowing air to pass through and dissipate heat. Steel — Strong and wear resistant. However, these bearings are best for dry environments since moisture will cause them to rust. ABEC Rating — Bearings with an ABEC rating meet industry tolerance standards established by the Annular Bearing Engineers Committee (ABEC). They're rated on a scale from 1 to 9. The higher the rating, the tighter the tolerance. Bearings rated ABEC 1 or 3 are precise enough for most applications. If your application consistently runs at high speeds or requires high accuracy, consider bearings rated ABEC 5 or higher, since they generate less friction and heat.

Product Number: 1389N36

Add to Wishlist Add to Compare

SEND INQUIRY

Description

For Shaft Type	Round
Bearing Construction	Single Row
Bearing Seal Type	Shielded
For Shaft Diameter	40 mm
For Housing ID	80 mm
Width	18 mm
Width Tolerance	-0.25 mm to 0 mm
ABEC Rating	1
Material	Steel
Maximum Rotation Speed	12,000 rpm
Lubrication	Lubricated
Temperature Range Minimum	-20° F
Temperature Range Max	250° F
Bearing Trade Number	6208-2Z
Ball Bearing Profile	Standard
Ball Material	Ceramic
Bearing Type	Ball
Cage Material	Steel
For Load Direction	Radial
Product ID	40 mm
ID Tolerance	-0.012 mm to 0 mm
Lubricant	Grease
OD	80 mm
OD Tolerance	-0.013 mm to 0 mm
Performance	Electrically Insulating
Radial Clearance	0.015 mm to 0.033 mm
Radial Clearance Trade Number	C3
Shaft Mount Type	Press Fit
System of Measurement	Metric
Country of Origin	Japan
DFARS Compliance	Specialty Metals COTS-Exempt
ECCN	1C999
REACH Compliance	Not Compliant
RoHS Compliance	RoHS 3 (2015/863/EU) Compliant
Schedule B Number	848210.5052
Shield Material	Steel
Dynamic Radial Load Capacity	6,500 lb.
Inner Ring Type	Standard
Static Radial Load Capacity	3,400 lb.
