1281N24
$5.15
$0.00
| Lubrication | Not Required |
| Material | Nylon |
| Performance | Dry Running, Easy Install |
| For Shaft Diameter | 1 1/8" |
| For Housing ID | 1 7/32" |
| Length | 1 11/64" |
| Length Tolerance | -0.0206" to 0" |
| Flange OD | 1 11/16" |
| Flange Thickness | 3/64" |
| Temperature Range | 0° F to 200° F |
| Bearing Type | Plain |
| For Load Direction | Combined Radial and Thrust |
| For Shaft Type | Round |
| Product ID | 1.1265" |
| ID Tolerance | 0" to 0.0015" |
| OD | 1.21875" |
| P Max | 300 psi |
| Plain Bearing Type | Flanged Sleeve |
| PV Max | 3,500 |
| Shaft Mount Type | Slip Fit |
| System of Measurement | Inch |
| V Max | 10 sfpm |
| Country of Origin | United States |
| DFARS Compliance | Specialty Metals COTS-Exempt |
| ECCN | EAR99 |
| REACH Compliance | Not Compliant |
| RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
| Schedule B Number | 848330.809 |
| Color | White |
| Construction | Split |
| OD Minimum Tolerance | Not Rated |
| OD Maximum Tolerance | Not Rated |

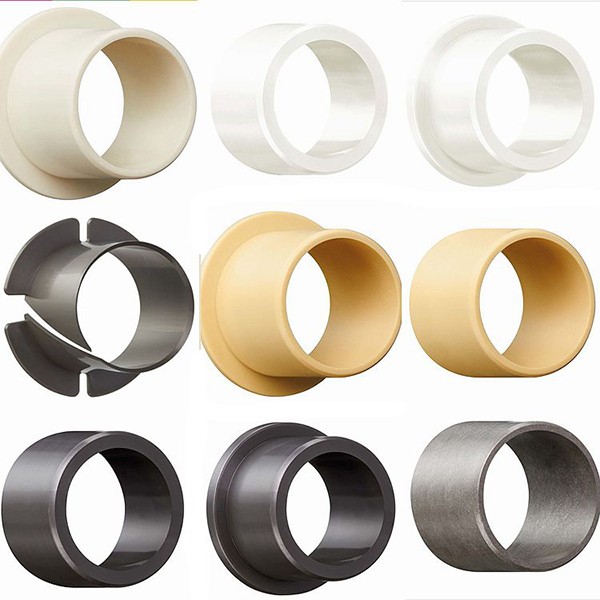

| Product Description | A gap running along the length of these bearings allows you to quickly squeeze them into a housing— no tools required. Made of naturally slippery plastic, there’s no need to add messy oil that could drip and attract dust. Flanged sleeve bearings combine a sleeve and thrust bearing in one. The flange supports thrust loads and prevents the bearing from being pushed out of place. The sleeve is the simplest way to support the load of a rotating shaft while reducing friction. Also known as plain bearings. Nylon — The most popular choice, nylon is wear resistant yet economical. Keep in mind, though, that it will swell and weaken when exposed to moisture. |
