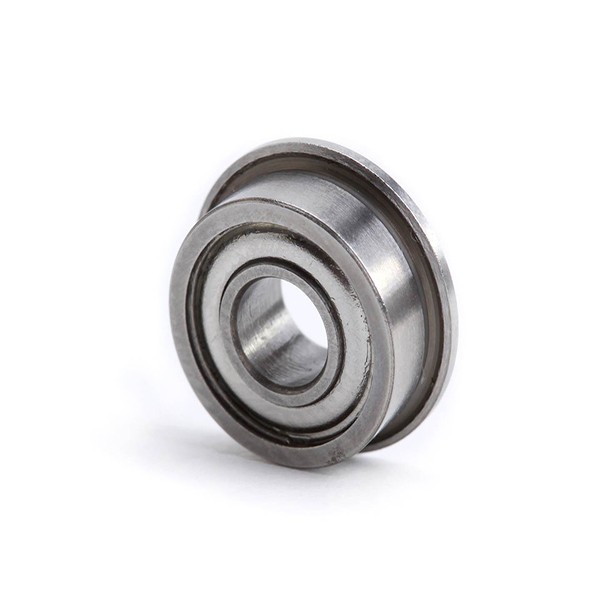

6383K232 Light Duty Flanged Ball Bearings

$6.22 $9.57

Quantity:

Add to Cart

Send a Inquiry

Add to Wishlist

Product Number:

6383K232

Additional info

For Shaft Type	Round
Bearing Construction	Single Row
Bearing Seal Type	Open
For Shaft Diameter	3/8"
For Housing ID	1 1/8"
Width	3/8"
Width Tolerance	-0.01" to 0.01"
ABEC Rating	Not Rated
Material	Steel
Maximum Rotation Speed	1,200 rpm
Lubrication	Lubricated
Temperature Range Minimum	-20° F
Temperature Range Max	250° F
Ball Bearing Profile	Flanged
Ball Material	Steel
Bearing Type	Ball
For Load Direction	Radial
Product ID	0.375"
ID Tolerance	0" to 0.005"
Lubricant	Oil
OD	1.125"
OD Tolerance	0" to 0.005"
Shaft Mount Type	Press Fit
System of Measurement	Inch
Country of Origin	United States
DFARS Compliance	Specialty Metals COTS-Exempt
ECCN	1C999
REACH Compliance	Not Compliant
RoHS Compliance	RoHS 3 (2015/863/EU) Compliant
Schedule B Number	848210.5044
Minimum Radial Clearance	Not Rated
Maximum Radial Clearance	Not Rated
Dynamic Radial Load Capacity	630 lb.
Inner Ring Type	Extended
Static Radial Load Capacity	210 lb.
Flange OD	1.25"
Flange Thk	0.06"
Inner Ring Width	0.5"
Inner Ring OD	0.688"
Duty Rating	Light
Product Description	Reduce friction and withstand jostling in rotating parts that don’t require high speed or precision, such as the shafts in hand cranks and casters. The flange presses against the housing wall, so vibration and other sudden forces parallel to the shaft (thrust loads) won't knock them off- kilter. Open — With no rubber seal to block airflow, these bearings dissipate heat quickly, extending the life of the lubricant and reducing friction over time. Steel — Strong and wear resistant. However, these bearings are best for dry environments since moisture will cause them to rust. Extended Inner Ring — Connect to mating parts without the need for a spacer. The inner ring juts out farther than the outer ring, so shaft collars and other objects won't touch the bearing's moving parts.
