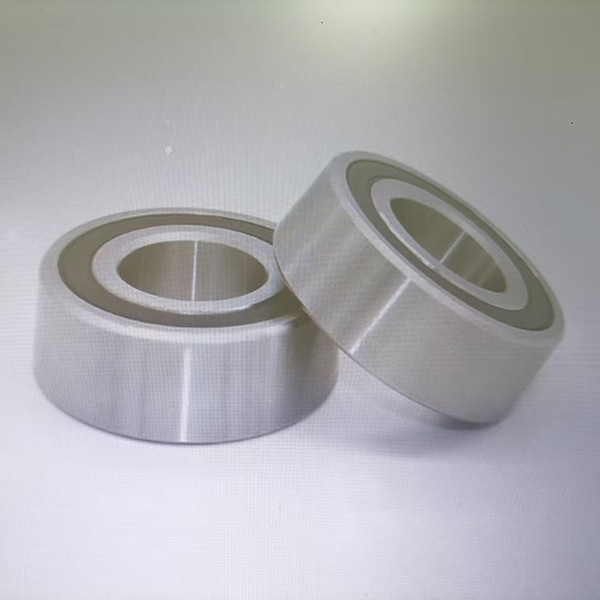

5951N124 High-Load Dry-Running Ball Bearings

$35.02 $53.87

Quantity:

Add to Cart

Send a Inquiry

Add to Wishlist

Product Number:

5951N124

Additional info

For Shaft Type	Round
Bearing Construction	Double Row
Bearing Seal Type	Open
For Shaft Diameter	1 1/4"
For Housing ID	2 1/4"
Width	3/4"
Width Tolerance	-0.005" to 0.005"
ABEC Rating	Not Rated
Material	Acetal
Maximum Rotation Speed	500 rpm
Lubrication	Not Required
Temperature Range Minimum	-40° F
Temperature Range Max	180° F
Bearing Trade Number	R20
Ball Bearing Profile	Standard
Ball Material	316 Stainless Steel
Bearing Type	Ball
Cage Material	Acetal
For Load Direction	Radial
Product ID	1.25"
ID Tolerance	0" to 0.004"
OD	2.25"
OD Tolerance	-0.006" to 0"
Performance	Dry Running, High Load, Moisture Resistant
Radial Clearance	0.001" to 0.012"
Shaft Mount Type	Press Fit
System of Measurement	Inch
Country of Origin	United States
DFARS Compliance	Specialty Metals COTS-Exempt
ECCN	1C999
REACH Compliance	REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant
RoHS Compliance	RoHS 3 (2015/863/EU) Compliant
Schedule B Number	848210.5048
Dynamic Radial Load Capacity	125 lb.
Inner Ring Type	Standard
Static Radial Load Capacity	110 lb.
Product Description	Double the balls for double the load capacity— these bearings carry twice as much weight as standard dry-running ball bearings. Made of naturally slippery plastic, there's no lubricant to maintain. No lubricant means no oil that could drip off, wash out, or collect dust, so they're ideal for spic-and-span spaces. They stand up to thorough cleanings since they won't rust or warp from moisture. Open — With no rubber seal to block airflow, these bearings dissipate heat quickly, reducing wear and extending the life of the bearing. Acetal — The most common choice for plastic bearings, acetal is economical yet still stands up to daily wear and tear. 316 Stainless Steel Balls — Won't corrode from salt water or harsh chemicals, such as bleach and chlorine found in cleaning solutions.

34%

5951N124 High-Load Dry-Running Ball Bearings

$35.02 $53.87

Bulk orders will be discounted, please contact us.

Double the balls for double the load capacity— these bearings carry twice as much weight as standard dry-running ball bearings. Made of naturally slippery plastic, there's no lubricant to maintain. No lubricant means no oil that could drip off, wash out, or collect dust, so they're ideal for spic-and-span spaces. They stand up to thorough cleanings since they won't rust or warp from moisture. Open — With no rubber seal to block airflow, these bearings dissipate heat quickly, reducing wear and extending the life of the bearing. Acetal — The most common choice for plastic bearings, acetal is economical yet still stands up to daily wear and tear. 316 Stainless Steel Balls — Won't corrode from salt water or harsh chemicals, such as bleach and chlorine found in cleaning solutions.
