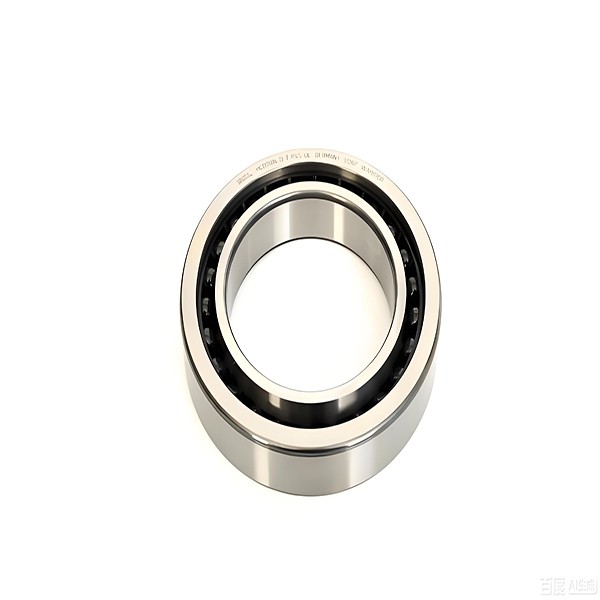

4487N11 High-Precision Angular Contact Ball Bearings

$460.19 $707.99

Quantity:

Add to Cart

Send a Inquiry

Add to Wishlist

Product Number:

4487N11

Additional info

Ball Bearing Type	Angular Contact
For Shaft Type	Round
Bearing Construction	Single Row
Bearing Seal Type	Sealed
For Shaft Diameter	30 mm
For Housing ID	55 mm
Width	13 mm
Width Tolerance	-0.25 mm to 0 mm
ABEC Rating	7
Material	Steel
Combined Load Capacity Dynamic	3,550 lbf
Combined Load Capacity Static	2,300 lbf
Maximum Rotation Speed	27,100 rpm
Lubrication	Lubricated
Contact Angle	15°
Temperature Range Minimum	0° F
Temperature Range Max	230° F
Bearing Trade Number	7006
Ball Bearing Profile	Standard
Ball Material	Steel
Bearing Type	Ball
Cage Material	Phenolic
For Load Direction	Combined Radial and Thrust
Product ID	30 mm
ID Tolerance	-0.003 mm to -0.001 mm
Lubricant	Grease
OD	55 mm
OD Tolerance	-0.006 mm to -0.002 mm
Performance	High Precision
Shaft Mount Type	Press Fit
System of Measurement	Metric
Country of Origin	Varies
DFARS Compliance	Specialty Metals COTS-Exempt
ECCN	1C999
REACH Compliance	REACH (EC 1907/2006) (06/14/2023, 235 SVHC) Compliant
RoHS Compliance	RoHS 3 (2015/863/EU) Compliant
Schedule B Number	848210.5028
Minimum Radial Clearance	Not Rated
Maximum Radial Clearance	Not Rated
Seal Material	Buna-N
Product Description	Choose them for equipment that requires both high speed and pinpoint accuracy, such as machine tool spindles. For example, a bearing on a spindle withstands a radial load as it spins at high speeds and a thrust load when the cutting tool touches the workpiece. These bearings don’t handle as much force from radial loads as standard ones, but you can pair them with a cylindrical roller bearing to increase their load capacity. Single Row — Single-row bearings withstand thrust loads from one direction. Open — With no rubber seal to block airflow, these bearings dissipate heat quickly, extending the life of the lubricant and reducing friction over time. Steel — Strong and wear resistant. However, these bearings are best for dry environments since moisture will cause them to rust.

35%

4487N11 High-Precision Angular Contact Ball Bearings

$460.19 $707.99

Bulk orders will be discounted, please contact us.

Our most precise bearings for tackling radial and thrust loads at once, with tolerances tighter than a speck of dust. Rated ABEC 7 out of 9, they meet strict tolerance standards established by the Annular Bearing Engineers Committee (ABEC). Choose them for equipment that requires both high speed and pinpoint accuracy, such as machine tool spindles. For example, a bearing on a spindle withstands a radial load as it spins at high speeds and a thrust load when the cutting tool touches the workpiece. These bearings don’t handle as much force from radial loads as standard ones, but you can pair them with a cylindrical roller bearing to increase their load capacity. Single Row — Single-row bearings withstand thrust loads from one direction. Sealed — The best choice for dirty environments. A barrier seals out dust so it won't gunk up or wear down the balls. However, these bearings retain the most heat since air can't flow through. Steel — Strong and wear resistant. However, these bearings are best for dry environments since moisture will cause them to rust.

Product Number: 4487N11

Add to Wishlist Add to Compare

SEND INQUIRY

Description

Ball Bearing Type	Angular Contact
For Shaft Type	Round
Bearing Construction	Single Row
Bearing Seal Type	Sealed
For Shaft Diameter	30 mm
For Housing ID	55 mm
Width	13 mm
Width Tolerance	-0.25 mm to 0 mm
ABEC Rating	7
Material	Steel
Combined Load Capacity Dynamic	3,550 lbf
Combined Load Capacity Static	2,300 lbf
Maximum Rotation Speed	27,100 rpm
Lubrication	Lubricated
Contact Angle	15°
Temperature Range Minimum	0° F
Temperature Range Max	230° F
Bearing Trade Number	7006
Ball Bearing Profile	Standard
Ball Material	Steel
Bearing Type	Ball
Cage Material	Phenolic
For Load Direction	Combined Radial and Thrust
Product ID	30 mm
ID Tolerance	-0.003 mm to -0.001 mm
Lubricant	Grease
OD	55 mm
OD Tolerance	-0.006 mm to -0.002 mm
Performance	High Precision
Shaft Mount Type	Press Fit
System of Measurement	Metric
Country of Origin	Varies
DFARS Compliance	Specialty Metals COTS-Exempt
ECCN	1C999
REACH Compliance	REACH (EC 1907/2006) (06/14/2023, 235 SVHC) Compliant
RoHS Compliance	RoHS 3 (2015/863/EU) Compliant
Schedule B Number	848210.5028
Minimum Radial Clearance	Not Rated
Maximum Radial Clearance	Not Rated
Seal Material	Buna-N
Product Description	Choose them for equipment that requires both high speed and pinpoint accuracy, such as machine tool spindles. For example, a bearing on a spindle withstands a radial load as it spins at high speeds and a thrust load when the cutting tool touches the workpiece. These bearings don’t handle as much force from radial loads as standard ones, but you can pair them with a cylindrical roller bearing to increase their load capacity. Single Row — Single-row bearings withstand thrust loads from one direction. Open — With no rubber seal to block airflow, these bearings dissipate heat quickly, extending the life of the lubricant and reducing friction over time. Steel — Strong and wear resistant. However, these bearings are best for dry environments since moisture will cause them to rust.
